Clamping ring for elastomer seals, stainless steel 1.4301/304
- Suitable for use with elastomer seals
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
120BSR025
- Suitable for use with elastomer seals
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000048698
| Connection flange | DN 20 – DN 25 ISO-KF |
|---|---|
| Torque | 2 Nm on wingnut |
| Material | Stainless steel 1.4301/304 |
| Temperature range | -196 – 200 °C |
| Overpressure max. | 1500 hPa |

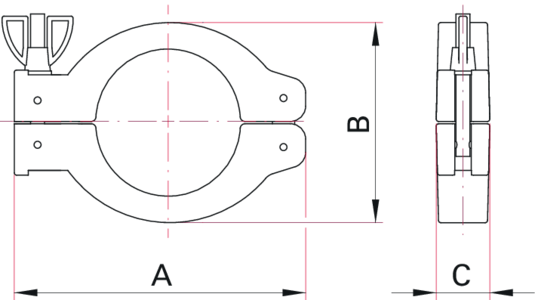

| mm | |
|---|---|
| A | 73 |
| B | 53 |
| C | 17 |
