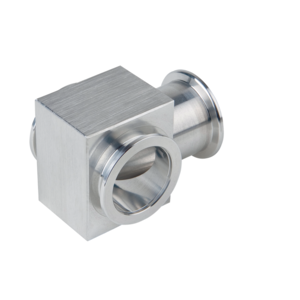

Tee, DN 16 ISO-KF, Aluminum EN AW 2011 Pb max. 0,4%
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
-
110RTS016-V.A
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
- Delivery time: 1-3 days
Global-No. 2000050123
| Connection flange | DN 16 ISO-KF |
|---|---|
| Pressure range | 1 · 10-8 hPa – 500 hPa over pressure |
| Material | Aluminum EN AW 2011 Pb max. 0,4% |
| Materials in contact with media | Aluminum EN AW 2011 Pb max. 0,4% |
| Temperature range | -196 – 150 °C |
| mm | |
|---|---|
| A | 40 |
| B | 20 |
| C | 16 |
