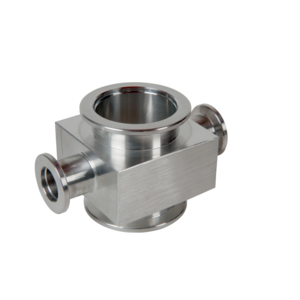

Reducer cross, DN 40 ISO-KF, DN 40-16 ISO-KF, aluminum EN AW 6061
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
-
110RKR040-016-V.B
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
- Delivery time: 1-3 days
Global-No. 2000293654
| Connection flange | DN 40 ISO-KF – DN 16 ISO-KF |
|---|---|
| Nominal diameter reduced | DN 16 ISO-KF |
| Pressure range | 1 · 10-8 hPa – 500 hPa over pressure |
| Material | Aluminum EN AW 6061 |
| Materials in contact with media | Aluminum EN AW 6061 |
| Temperature range | -196 – 150 °C |

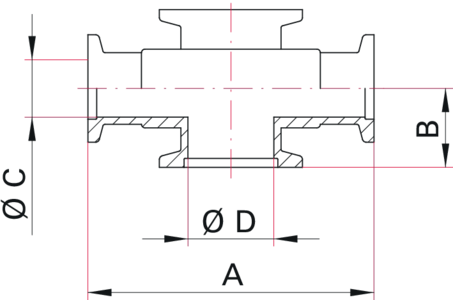

| mm | |
|---|---|
| A | 100 |
| B | 30 |
| C | 16 |
| D | 40 |
