High vacuum chamber, cubical, KBH
- Cubical chamber body
- Hinged door and FKM seal
- Surface: inside and outside glass bead blasted
- Chamber with mounting straps and ring bolts
- Chamber ports available (accessories)
- Feet available separately (accessories)
-
820KBH0300-S
- Cubical chamber body
- Hinged door and FKM seal
- Surface: inside and outside glass bead blasted
- Chamber with mounting straps and ring bolts
- Chamber ports available (accessories)
- Feet available separately (accessories)
- Delivery time: On request
Global-No. 2000038832
| Connection flange | DN 300 |
|---|---|
| Tightness | < 1 · 10-9 Pa m³/s |
| Pressure range | 1E-7 hPa – to ambient pressure |
| Material | Chamber body made from stainless steel 304 (1.4301); stainless steel door |
| Temperature range | 15 – 150 °C |

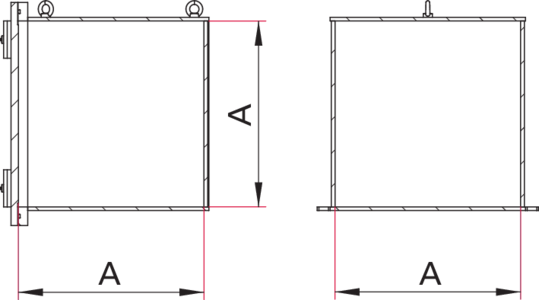

| mm | |
|---|---|
| A | 300 |
