AVC 016 PA, angle valve
  • Order number: PF A38 205
  • Bellows-sealed
  • With visual position indicator
  • Normally open (n.o.)
  • Closed pressureless
  • Service life: 10 million operating cycles
  • Delivery time: On request
€580.00
Actuator
  • Electro-pneumatic
Bakeout temperature: actuator, pilot valve 50 °C
Bakeout temperature: housing 80 °C
Operating pressure min. 1 · 10-8 hPa
Tightness 1 · 10-10 Pa m³/s
Seal
  • FKM
Differential pressure in opening direction 2000 hPa
Differential pressure in closing direction 5000 hPa
Pressure max. (absolute) 2000 hPa
Compressed air (overpressure) 4 000 – 8 000 hPa
Compressed air volume 4 cm³
Feedthrough Bellows, stainless steel
Housing Aluminum
Weight 0.49 kg
Power control valve 2.5 W
Conductance value with molecular flow 5 l/s
Nominal diameter DN 16 ISO-KF
Closing/opening time 100 ms/100 ms
Service life 10000000 cycles
Position indicator
  • Included
Position indicator: Load capacity 250 V AC / 0,1 A | 50 V DC / 0,25 A
Control valve Included
Type Angle valve
Supply 24 V DC

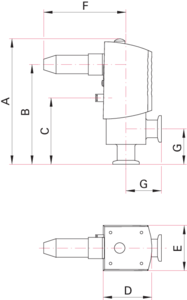

Dimension Image
mm
A 142
B 112.9
C 75.1
D 55
E 51.4
F 93.2
G 40
