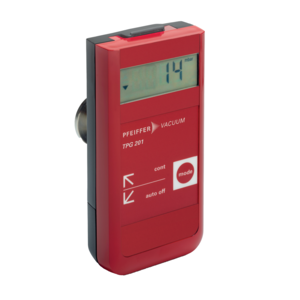

TPG 201, Pirani Handheld measurement instrument
- Battery-operated handheld vacuum gauge
- Measurement range from 5 · 10-4 – 1000 hPa
- Data logging function
- Data readout by PC
- Optional power supply, 100 – 240 V AC / 15 V DC
-
PT G28 201
- Battery-operated handheld vacuum gauge
- Measurement range from 5 · 10<sup>-4</sup> – 1000 hPa
- Data logging function
- Data readout by PC
- Optional power supply, 100 – 240 V AC / 15 V DC
- Delivery time: 1-3 days
Global-No. 2000007105
| Connection flange | DN 16 ISO-KF |
|---|---|
| Battery type |
|
| Seal | Metal |
| Pressure max. | 4 · 103 hPa |
| Attribute | Pirani sensor |
| Electrical connection | Jack bush 2.5 mm for power supply, 12 – 15 V DC |
| Weight | 195 g |
| Power consumption | 110 mW |
| Materials in contact with media |
|
| Measuring range | 5E-4 – 1E3 hPa |
| Accuracy of measurement in range 1 | 10 % (2E-3 hPa – 1E1 hPa) |
| Accuracy of measurement in range 2 | 30 % (1E1 hPa – 1E2 hPa) |
| Measuring method | Pirani |
| Interface: Type | Mini-USB, Type B |
| Protection degree | IP40 |
| Ambient temperature | 5 – 50 °C |
