Coaxial feedthrough, BNC, grounded shield, on flange
- A grounded shield is when the flange respectively the weld lip have the same potential as the shield
- The current is per pin
- Flange material: Stainless steel
- Including atmosphere sided plug (-65 to 165 °C)
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
-
120XBG040-4
- A grounded shield is when the flange respectively the weld lip have the same potential as the shield
- The current is per pin
- Flange material: Stainless steel
- Including atmosphere sided plug (-65 to 165 °C)
- The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10<sup>-4</sup> hPa
- Delivery time: 1-3 days
Global-No. 2000048117
| Screening | Grounded shield |
|---|---|
| Connection flange | DN 40 ISO-KF |
| Heat up and cool down rate | ≤ 20 K/min |
| Tightness | 1 · 10-11 Pa m³/s |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Feedthrough voltage | 500 V DC |
| Input voltage(s) | 500 V DC |
| Materials in contact with media | Flange: Stainless steel |
| Pins | 4 |
| Current | 3 A |
| Temperature range (vacuum side) | -100 – 300 °C |

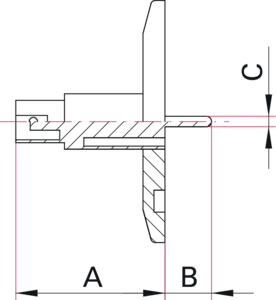

| mm | |
|---|---|
| A | 36 |
| B | 10 |
| C | 2.4 |
