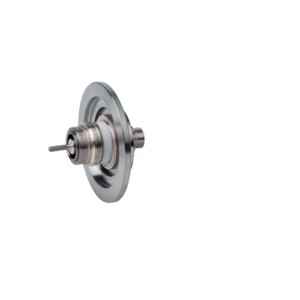

Coaxial Feedthrough, Flanged, SHV-5, Floating Shield
  • Order number: 120XSF040-1
  • A floating shield is when the potential of the shield is separated from the flange respectively the weld lip
  • Flange material: stainless steel
  • Including atmosphere sided plug (-65 to 165 °C)
  • The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10-4 hPa
  • Delivery time: 5 weeks
€540.00
Screening
Heat up and cool down rate
Tightness
Pressure range
Material
Nominal diameter
Pins
Voltage
Current
Temperature range (vacuum side)

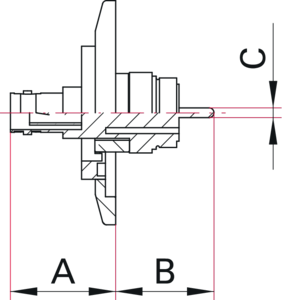

mm
A49
B38
C2.4
