Feedthrough, 4-pole, plug connector
  • Order number: PF 264 016 -X
  • Vacuum-side plug connection
  • DN 40 ISO-KF
  • Delivery time: 1-3 days
€670.00
Connection: Atmospheric side Connector (accessory)
Connection: Vacuum side Connector
Connection flange DN 40 ISO-KF
Bakeout temperature max. ≤ 130 °C
Tightness 1 · 10-10 Pa m³/s
Seal
  • FKM
Pressure range 1E-8 hPa – 1.5E3 hPa over pressure
Housing
  • Stainless steel 303/1.4305
Insulator PTFE/Araldit®
Cable diameter for plug connectors 16.2 mm
Conductor diameter 2.5 mm
Materials in contact with media
  • Flange: stainless steel; pins: bronze (gold-plated)
Pins 4
Voltage, per pole 800 V
Current per pole 16 A

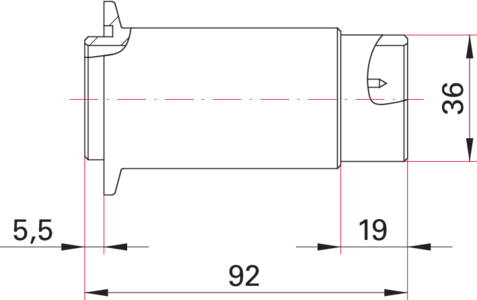

Dimension Image
