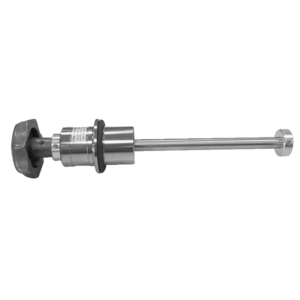

DS 025 A, elastomer-sealed rotary/linear feedthrough
- Direct power transmission using elastomer-sealed shaft
- Freely rotatable and slidable
- Adjustable stroke limiting stops
-
PF 243 010 -T
- Direct power transmission using elastomer-sealed shaft
- Freely rotatable and slidable
- Adjustable stroke limiting stops
- Delivery time: 1-3 days
Global-No. 2000026077
| Connection flange | DN 25 ISO-KF |
|---|---|
| Actuator | Rotary knob |
| Bakeout temperature max. | ≤ 110 °C |
| Load capacity radial: at max. stroke | 15 N |
| Load capacity: torsion | 8 nm |
| Operating temperature | ≤ 50 °C |
| Seal | FKM |
| Pressure range | 1E-8 hPa – to ambient pressure |
| Feedthrough | FKM shaft seals |
| Weight | 0.2 kg |
| Stroke | 100 mm |
| Material | Housing: aluminum; shaft: stainless steel |
| O-ring material | FKM |
| Shaft connection | M4 x 8 mm / ø 8 mm |
