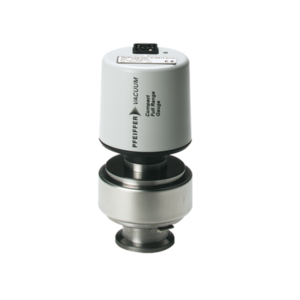

PKR 261, metal-sealed
- Flange size DN 40 ISO-KF
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Corrosion resistant
-
PT R26 251
- Flange size DN 40 ISO-KF
- The maximum pressure applies to inert gases and temperatures below 55 °C
- Corrosion resistant
- Delivery time: 5 weeks
Global-No. 2000006148
| Anode |
|
|---|---|
| Connection flange | DN 40 ISO-KF |
| Output signal: Measuring range | 1.8 – 8.6 V |
| Output signal: Minimum load | 10 kΩ |
| Bakeout temperature max.(electronics removed) | ≤ 150 °C |
| Seal |
|
| Pressure max. | 1 · 104 hPa |
| Feedthrough |
|
| Attribute | Metal sealed |
| Input voltage(s) | 15 – 30 V DC |
| Flange, material | Stainless steel |
| Weight | 0.75 kg |
| Filament | Tungsten |
| Power consumption max. | 2 W |
| Measuring range | 5E-9 – 1E3 hPa |
| Accuracy of measurement | 30 % (1E-8 hPa – 1E2 hPa) |
| Measurement cable length min. | 300 m |
| Measuring method |
|
| Ambient temperature | 5 – 55 °C |
| Volume | 20 cm³ |
| Repeatability | 5 % (1E-8 hPa – 1E2 hPa) |
