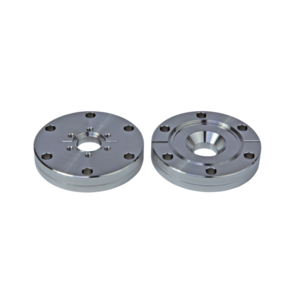

CF Reducer Flange

Stainless steel 304L

Technical Data

Connection flange	A [mm]	B [mm]	C	D [mm]	Nominal diameter reduced	Order number	Delivery time	Your price	Amount
DN 40 CF	12.7 mm	16 mm	M4	6 mm	DN 16 CF	420FLR040-016	1-3 days	€53.00
DN 63 CF	17.5 mm	16 mm	M4	6 mm	DN 16 CF	420FLR063-016	1-3 days	€89.00
DN 63 CF	17.5 mm	37 mm	M6	9 mm	DN 40 CF	420FLR063-040	1-3 days	€95.00
DN 100 CF	19.8 mm	37 mm	M6	9 mm	DN 40 CF	420FLR100-040	1-3 days	€157.00
DN 100 CF	19.8 mm	66 mm	M8	13 mm	DN 63 CF	420FLR100-063	1-3 days	€164.00
DN 160 CF	22.2 mm	37 mm	M6	9 mm	DN 40 CF	420FLR160-040	1-3 days	€250.00
DN 160 CF	22.2 mm	66 mm	M8	13 mm	DN 63 CF	420FLR160-063	1-3 days	€260.00
DN 160 CF	22.2 mm	100 mm	M8	13 mm	DN 100 CF	420FLR160-100	1-3 days	€275.00
DN 200 CF	24.5 mm	37 mm	M6	9 mm	DN 40 CF	420FLR200-040	On request	€410.00
DN 200 CF	24.5 mm	66 mm	M8	13 mm	DN 63 CF	420FLR200-063	1-3 days	€420.00
DN 200 CF	24.5 mm	100 mm	M8	13 mm	DN 100 CF	420FLR200-100	1-3 days	€430.00
DN 200 CF	24.5 mm	155 mm	M8	13 mm	DN 160 CF	420FLR200-160	1-3 days	€455.00
DN 250 CF	26 mm	37 mm	M6	9 mm	DN 40 CF	420FLR250-040	1-3 days	€750.00
DN 250 CF	26 mm	66 mm	M8	13 mm	DN 63 CF	420FLR250-063	1-3 days	€710.00
DN 250 CF	26 mm	100 mm	M8	13 mm	DN 100 CF	420FLR250-100	1-3 days	€735.00
DN 250 CF	26 mm	155 mm	M8	13 mm	DN 160 CF	420FLR250-160	On request	€755.00
DN 250 CF	26 mm	200 mm	M8	13 mm	DN 200 CF	420FLR250-200	1-3 days	€790.00
