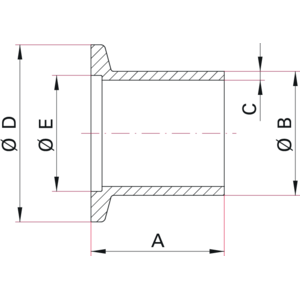

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Pipe dimension	Order number	Delivery time	Your price
DN 10 ISO-KF	30	14	2	30	12.2	14 mm × 2 mm	120FRA010-14-30	1-3 days	€11.50
DN 10 ISO-KF	52	14	2	30	12.2	14 mm × 2 mm	120FRA010-14-52	1-3 days	€17.50
DN 10 ISO-KF	70	14	2	30	12.2	14 mm × 2 mm	120FRA010-14-70	1-3 days	€22.00
DN 16 ISO-KF	40	19.05	1.65	30	17.2	19.05 mm × 1.65 mm	120FRA016-19-40	1-3 days	€15.50
DN 16 ISO-KF	30	20	2	30	17.2	20 mm × 2 mm	120FRA016-20-30	1-3 days	€11.50
DN 16 ISO-KF	52	20	2	30	17.2	20 mm × 2 mm	120FRA016-20-52	1-3 days	€14.50
DN 16 ISO-KF	70	20	2	30	17.2	20 mm × 2 mm	120FRA016-20-70	1-3 days	€18.50
DN 25 ISO-KF	40	25.4	1.65	40	26.2	25.4 mm × 1.65 mm	120FRA025-25-40	1-3 days	€19.50
DN 25 ISO-KF	30	28	2	40	26.2	28 mm × 2 mm	120FRA025-28-30	1-3 days	€14.50
DN 25 ISO-KF	55	28	2	40	26.2	28 mm × 2 mm	120FRA025-28-55	1-3 days	€19.50
DN 25 ISO-KF	70	28	2	40	26.2	28 mm × 2 mm	120FRA025-28-70	1-3 days	€27.00
DN 40 ISO-KF	40	38	1.5	55	41.2	38 mm × 1.5 mm	120FRA040-38-40	1-3 days	€22.00
DN 40 ISO-KF	26	42.4	2	55	41.2	42.4 mm × 2 mm	120FRA040-42-26	1-3 days	€21.00
DN 40 ISO-KF	30	44.5	2	55	41.2	44.5 mm × 2 mm	120FRA040-44-30	1-3 days	€17.50
DN 40 ISO-KF	58	44.5	2	55	41.2	44.5 mm × 2 mm	120FRA040-44-58	1-3 days	€22.00
DN 40 ISO-KF	70	44.5	2	55	41.2	44.5 mm × 2 mm	120FRA040-44-70	1-3 days	€33.00
DN 50 ISO-KF	40	50.8	1.65	75	52.4	50.8 mm × 1.65 mm	120FRA050-50-40	1-3 days	€33.00
DN 50 ISO-KF	26	54	2	75	52.4	54 mm × 2 mm	120FRA050-54-26	1-3 days	€25.00
DN 50 ISO-KF	30	57	3.2	75	52.4	57 mm × 3.2 mm	120FRA050-57-30	1-3 days	€28.00
DN 50 ISO-KF	58	57	3.2	75	52.4	57 mm × 3.2 mm	120FRA050-57-58	1-3 days	€35.00
DN 50 ISO-KF	70	57	3.2	75	52.4	57 mm × 3.2 mm	120FRA050-57-70	1-3 days	€47.00

Stainless steel 1.4404/316L

Technical Data

Pressure range: 1E-8 hPa – 1.5E3 hPa over pressure (elastomer seal); 1E-9 hPa – 1.5E3 hPa over pressure (metal seal)
Temperature range: -196 – 350 °C

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Pipe dimension	Order number	Delivery time	Your price
DN 10 ISO-KF	30	14	2	30	12.2	14 mm × 2 mm	170FRA010-14-30	1-3 days	€17.50
DN 10 ISO-KF	70	14	2	30	12.2	14 mm × 2 mm	170FRA010-14-70	1-3 days	€32.00
DN 16 ISO-KF	40	19.05	1.65	30	17.2	19.05 mm × 1.65 mm	170FRA016-19-40	1-3 days	€16.50
DN 16 ISO-KF	30	20	2	30	17.2	20 mm × 2 mm	170FRA016-20-30	1-3 days	€13.50
DN 16 ISO-KF	70	20	2	30	17.2	20 mm × 2 mm	170FRA016-20-70	1-3 days	€26.00
DN 25 ISO-KF	40	25.4	1.65	40	26.2	25.4 mm × 1.65 mm	170FRA025-25-40	1-3 days	€23.00
DN 25 ISO-KF	30	28	2	40	26.2	28 mm × 2 mm	170FRA025-28-30	1-3 days	€15.50
DN 25 ISO-KF	70	28	2	40	26.2	28 mm × 2 mm	170FRA025-28-70	1-3 days	€29.00
DN 40 ISO-KF	26	42.4	2	55	41.2	42.4 mm × 2 mm	170FRA040-42-26	1-3 days	€18.50
DN 40 ISO-KF	30	44.5	2	55	41.2	44.5 mm × 2 mm	170FRA040-44-30	1-3 days	€19.50
DN 40 ISO-KF	70	44.5	2	55	41.2	44.5 mm × 2 mm	170FRA040-44-70	1-3 days	€36.00
DN 50 ISO-KF	26	54	2	75	52.4	54 mm × 2 mm	170FRA050-54-26	1-3 days	€26.00
DN 50 ISO-KF	30	57	3.2	75	52.4	57 mm × 3.2 mm	170FRA050-57-30	1-3 days	€29.00
DN 50 ISO-KF	70	57	3.2	75	52.4	57 mm × 3.2 mm	170FRA050-57-70	1-3 days	€55.00
