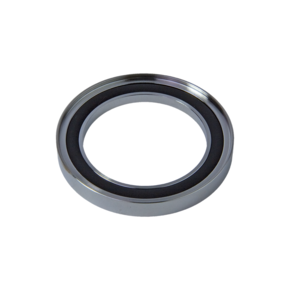

ISO-KF Outer Centering Ring with Inner Support Ring

Aluminum EN AW-6061

Technical Data

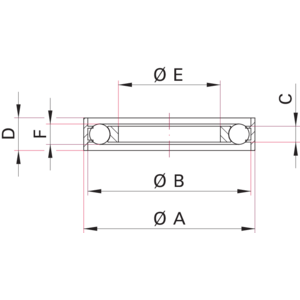

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	32.5 mm	30 mm	3.9 mm	8 mm	16 mm	5 mm	FKM	112ZAI016	1-3 days	€11.00
DN 25 ISO-KF	42 mm	40 mm	3.9 mm	8 mm	25 mm	5 mm	FKM	112ZAI025	1-3 days	€13.00
DN 40 ISO-KF	57.5 mm	55 mm	3.9 mm	8 mm	40 mm	5 mm	FKM	112ZAI040	1-3 days	€13.00
DN 50 ISO-KF	77.5 mm	75 mm	3.9 mm	8 mm	50 mm	5.33 mm	FKM	112ZAI050	1-3 days	€18.00

Stainless Steel 304/1.4301

Technical Data

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	32.5 mm	30 mm	3.9 mm	8 mm	16 mm	5 mm	FKM	122ZAI016	1-3 days	€14.00
DN 25 ISO-KF	42 mm	40 mm	3.9 mm	8 mm	25 mm	5 mm	FKM	122ZAI025	1-3 days	€17.00
DN 40 ISO-KF	57.5 mm	55 mm	3.9 mm	8 mm	40 mm	5 mm	FKM	122ZAI040	1-3 days	€19.00
DN 50 ISO-KF	77.5 mm	75 mm	3.9 mm	8 mm	50 mm	5.33 mm	FKM	122ZAI050	1-3 days	€26.00
