D-Sub Feedthroughs, Flanged

Product description

Pin material: stainless steel (gold-plated)
Flange material: Stainless steel
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10^-4 hPa

Subcategories

ISO-KF, Male
ISO-K, Male
CF, Male

Die Filterung ergab Treffer

ISO-KF, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

€820.00

€940.00

ISO-K, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

€1,130.00

€1,825.00

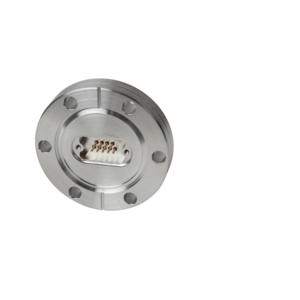

CF, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-11 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

€835.00

€1,060.00

€1,135.00

€2,180.00

€1,820.00

ISO-KF, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

Connection flange	Pins	Order number	Delivery time	Your price	Amount
DN 40 ISO-KF	9	120XSD040-9	1-3 days	€820.00
DN 50 ISO-KF	15	120XSD050-15	1-3 days	€940.00

ISO-K, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

Connection flange	Pins	Order number	Delivery time	Your price	Amount
DN 63 ISO-K	25	320XSD063-25	1-3 days	€1,130.00
DN 100 ISO-K	50	320XSD100-50	5 weeks	€1,825.00

CF, Male

Technical Data

Heat up and cool down rate: ≤ 25 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-11 hPa – to ambient pressure
Feedthrough voltage: 500 V DC
Materials in contact with media:
- Flange: stainless steel; pins: stainless steel (gold-plated)
Temperature range (vacuum side): -100 – 300 °C

Connection flange	Pins	Order number	Delivery time	Your price	Amount
DN 40 CF	9	420XSD040-9	1-3 days	€835.00
DN 63 CF	15	420XSD063-15	5 weeks	€1,060.00
DN 63 CF	25	420XSD063-25	1-3 days	€1,135.00
DN 63 CF	50 (2 x 25)	420XSD063-25-2	1-3 days	€2,180.00
DN 100 CF	50	420XSD100-50	1-3 days	€1,820.00

‹ › ×
