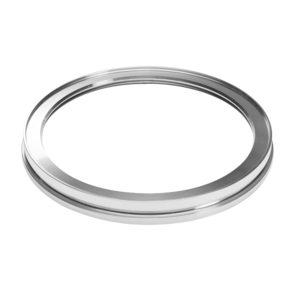

ISO-K Viewports

Stainless Steel/Borosilicate

Technical Data

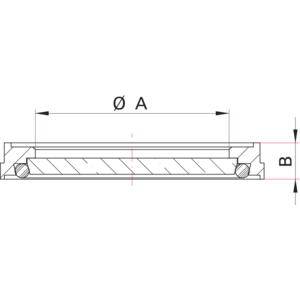

Connection flange	A [mm]	B [mm]	Pressure range	Order number	Delivery time	Your price	Amount
DN 63 ISO-K	72 mm	13.5 mm	1E-8 hPa – 5E2 hPa over pressure	322GSG063	1-3 days	€230.00
DN 100 ISO-K	104 mm	15 mm	1E-8 hPa – 5E2 hPa over pressure	322GSG100	1-3 days	€260.00
DN 160 ISO-K	153 mm	17.5 mm	1E-8 hPa – 5E2 hPa over pressure	322GSG160	1-3 days	€495.00
DN 200 ISO-K	210 mm	17.5 mm	1E-8 hPa – to ambient pressure	322GSG200	1-3 days	€670.00

Aluminum / Borosilicate glass

Technical Data

Connection flange	A [mm]	B [mm]	Pressure range	Order number	Delivery time	Your price	Amount
DN 63 ISO-K	72 mm	13.5 mm	1E-8 hPa – 5E2 hPa over pressure	PF 410 011 -T	1-3 days	€170.00
DN 100 ISO-K	104 mm	15.5 mm	1E-8 hPa – 5E2 hPa over pressure	PF 411 011 -T	1-3 days	€235.00
DN 160 ISO-K	153 mm	17.2 mm	1E-8 hPa – 5E2 hPa over pressure	PF 412 011 -T	1-3 days	€475.00
