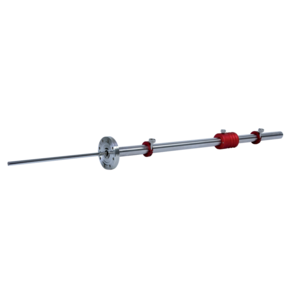

Magnetically coupled Rotary/Linear Feedthrough MDM

Product description

  • Stainless steel ball bearing for linear and rotational movement with dry lubrication suitable for UHV
  • Magnetic coupling with samarium-cobalt magnets
  • Hermetically sealed, suitable for UHV
  • Shaft made from hardened stainless steel, diameter 12 mm (tolerance h6)
  • Freely rotatable and slidable
  • Adjustable stroke limiting stops

Die Filterung ergab Treffer

Technical Data

  • Bakeout temperature max.: ≤ 200 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Pressure range: 1E-10 hPa – 5E2 hPa over pressure
  • Transferred torque: 2.3 N m
  • Shaft connection: With threaded hole, vented: M6 x 15
  • Shaft load, axial: 50 N
€4,420.00
€4,450.00
€4,480.00
