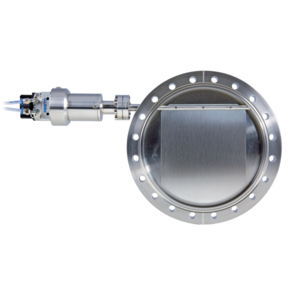

CF Shutter, Pneumatic

Product description

  • Hermetically sealed, suitable for UHV
  • Bellows-sealed feedthrough
  • Pneumatically operated; double-acting
  • Opening and closing speed adjustable

Die Filterung ergab Treffer

Technical Data

  • Connection: (compressed air) 4 mm hose connection
  • Bakeout temperature max.: 250 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Angle of rotation: 0 to 90 ° (final position adjustable)
  • Pressure range: 1 · 10-9 hPa to ambient pressure
  • Compressed air (overpressure): 1 500 – 7 000 hPa
  • Mounting orientation: Any
  • Service life: 500000 cycles
€1,790.00
€1,820.00
€1,940.00
€2,040.00
