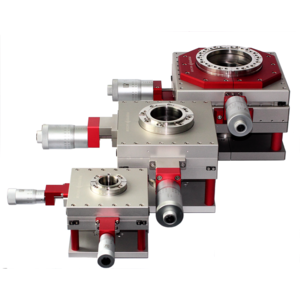

XY-Axis Precision Manipulator
Product description
- Precision cross roller guides
- Zero-backlash and no slip-stick effect
- Guidance and drive wear-free and maintenance-free
- Extremely stable design concept minimizes position offset due to pressure changes
- Micrometer screws with big knobs - easy to handle and easy to read
- Bidirectional scale
- Maximum x and y travel fully usable simultaneously
- Connection flange with through holes, traversable flange with threaded holes
Subcategories
Die Filterung ergab Treffer
Technical Data
- Bakeout temperature: ≤ 230 °C
- Operating temperature: -15 – 80 °C
- Tightness: < 1 · 10-11 Pa m³/s
- Pressure range: 1 · 10-10 hPa to ambient pressure
- Mounting orientation: Arbitrary
- Inner diameter: 38 mm
- Material: Bellows: stainless steel 316L, flange and tube: stainless steel 304L, housing: aluminum anodized
- Service life: Min. 10.000 cycles at full deflection (bellows easy replace)
- Repeatable precision: < 5 µm
Technical Data
- Bakeout temperature: ≤ 230 °C
- Operating temperature: -15 – 80 °C
- Tightness: < 1 · 10-11 Pa m³/s
- Pressure range: 1 · 10-10 hPa to ambient pressure
- Mounting orientation: Arbitrary
- Inner diameter: DN 63: 65 mm, DN 100: 102 mm
- Material: Bellows: stainless steel 316L, flange and tube: stainless steel 304L, housing: aluminum anodized
- Service life: Min. 10.000 cycles at full deflection (bellows easy replace)
- Repeatable precision: < 3 µm
