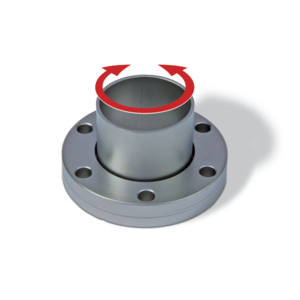

CF half nipple, rotatable, with thread - Product

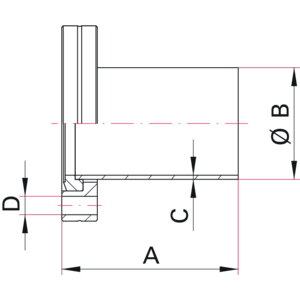

CF half nipple, rotatable, with thread - Dimensions

CF half nipple, rotatable, with thread

Product description

  • Pipe surface: glass-bead blasted (polished version on request)
  • Other flange and tube materials on request
  • Other pipe dimensions on request
  • CF flanges in nominal sizes DN 16 to DN 250 according to ISO 3669

Die Filterung ergab Treffer

Technical Data

  • Tightness: 1 · 10-11 Pa m³/s
  • Pressure range: 1E-12 hPa – to ambient pressure
  • Material: Flange: stainless steel 304L; tube: stainless steel 304L or better
  • Temperature range: -196 – 300 °C
420FRD016-18-38-G
Global-No. 2000040928
€75.00
420FRD040-38-63-G
Global-No. 2000040938
€122.00
420FRD040-40-38-G
Global-No. 2000040941
€117.00
420FRD040-40-63-G
Global-No. 2000040943
€108.00
420FRD063-70-105-G
Global-No. 2000040952
€184.00
420FRD100-108-135-G
Global-No. 2000040960
€285.00
420FRD160-159-167-G
Global-No. 2000040968
€570.00
