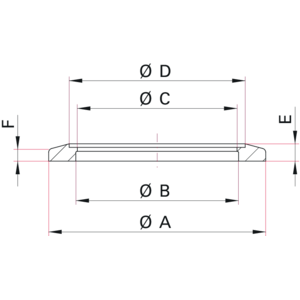

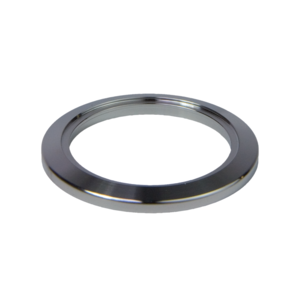

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Pipe dimension	Order number	Delivery time	Your price
DN 10 ISO-KF	30	12.2	10.2	12.8	5	3	12.7 mm × 1.24 mm	120FAN010-12 Global-No. 2000048703	1-3 days	€8.70
DN 10 ISO-KF	30	12.2	10	14.15	5	3	14 mm × 2 mm	120FAN010-14 Global-No. 2000048704	1-3 days	€6.50
DN 16 ISO-KF	30	17.2	15.75	19.2	4.45	3	19.05 mm × 1.65 mm	120FAN016-19 Global-No. 2000048707	1-3 days	€8.70
DN 16 ISO-KF	30	17.2	16	20.2	4.31	3	20 mm × 2 mm	120FAN016-20 Global-No. 2000048708	1-3 days	€6.50
DN 25 ISO-KF	40	26.2	22.1	25.6	4.93	3	25.4 mm × 1.65 mm	120FAN025-25 Global-No. 2000048711	1-3 days	€11.50
DN 25 ISO-KF	40	26.2	24	28.2	4.58	3	28 mm × 2 mm	120FAN025-28 Global-No. 2000048712	1-3 days	€8.70
DN 40 ISO-KF	55	41.2	34.8	38.4	5	3	38 mm × 1.5 mm	120FAN040-38 Global-No. 2000048716	1-3 days	€14.50
DN 40 ISO-KF	55	41.2	40.5	44.7	4.38	3	44.5 mm × 2 mm	120FAN040-44 Global-No. 2000048717	1-3 days	€11.50
DN 50 ISO-KF	75	52.4	47.5	51	5	3	50.8 mm × 1.65 mm	120FAN050-51 Global-No. 2000048720	1-3 days	€18.50
DN 50 ISO-KF	75	52.4	50.6	57.2	5	3	57 mm × 3.2 mm	120FAN050-57 Global-No. 2000048723	1-3 days	€16.50

Stainless steel 1.4404/316L

Pressure range: 1E-8 hPa – 1.5E3 hPa over pressure (elastomer seal); 1E-9 hPa – 1.5E3 hPa over pressure (metal seal)
Temperature range: -196 – 350 °C

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	Pipe dimension	Order number	Delivery time	Your price
DN 10 ISO-KF	30	12.2	10	14.15	5	3	14 mm × 2 mm	170FAN010-14 Global-No. 2000045541	1-3 days	€7.50
DN 16 ISO-KF	30	17.2	16	20.2	5	3	20 mm × 2 mm	170FAN016-20 Global-No. 2000045542	1-3 days	€7.50
DN 25 ISO-KF	40	26.2	24	28.2	5	3	28 mm × 2 mm	170FAN025-28 Global-No. 2000044616	1-3 days	€9.70
DN 40 ISO-KF	55	41.2	40.5	44.7	5	3	44.5 mm × 2 mm	170FAN040-44 Global-No. 2000044618	1-3 days	€13.50
DN 50 ISO-KF	75	52.4	50.6	57.2	5	3	57 mm × 3.2 mm	170FAN050-57 Global-No. 2000044620	1-3 days	€17.50

‹ › ×
