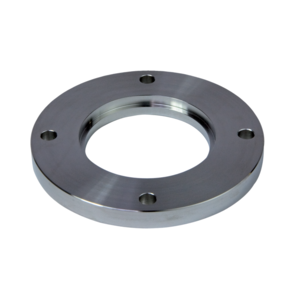

ISO-F Weld Flange - Product

ISO-F Weld Flange - Dimensions

Product
Dimensions

ISO-F Weld Flange

Product description

Other flange sizes or materials available upon request

Subcategories

Stainless steel 1.4301/304

Die Filterung ergab Treffer

Stainless steel 1.4301/304

Technical Data

Pressure range: 1E-8 hPa – 1.5E3 hPa over pressure (elastomer seal); 1E-9 hPa – 1.5E3 hPa over pressure (metal seal)
Temperature range: -196 – 300 °C

€71.00

€109.00

€190.00

€290.00

€385.00

Stainless steel 1.4301/304

Technical Data

Pressure range: 1E-8 hPa – 1.5E3 hPa over pressure (elastomer seal); 1E-9 hPa – 1.5E3 hPa over pressure (metal seal)
Temperature range: -196 – 300 °C

Connection flange	A [mm]	B [mm]	C [mm]	Pipe dimension	Order number	Delivery time	Your price	Amount
DN 63 ISO-F	76.4	70	12	76.1 mm × 3 mm	520FAN063-76	1-3 days	€71.00
DN 100 ISO-F	108.3	102	12	108 mm × 3 mm	520FAN100-108	1-3 days	€109.00
DN 160 ISO-F	159.3	153	16	159 mm × 3 mm	520FAN160-159	1-3 days	€190.00
DN 200 ISO-F	219.4	213	16	219 mm × 3 mm	520FAN200-219	1-3 days	€290.00
DN 250 ISO-F	273.4	261	16	273 mm × 3 mm	520FAN250-273	1-3 days	€385.00

‹ › ×
