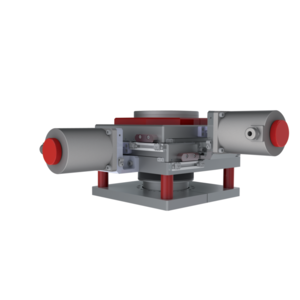

XY-Axis Precision Manipulator Motorized

XY-Axis Precision Manipulator Motorized

Die Filterung ergab Treffer

Technical Data

  • Bakeout temperature with electric parts: 80 °C
  • Bakeout temperature without electric parts: 230 °C
  • Operating temperature: -10 – 50 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Pressure range: 1E-10 hPa – to ambient pressure
  • Mounting orientation: Arbitrary
  • Inner diameter: 38 mm
  • Material: Bellows: stainless steel 316L, flange and tube: stainless steel 304L, housing: aluminum anodized
  • Motor rating: 4.1 V DC; max. 1.2 A/phase bipolar
  • Motor type: 2-ph stepping motor
  • Service life: 10000 cycles
  • Repeatable precision: 3 µm (at full motor step)
€7,590.00

Technical Data

  • Bakeout temperature with electric parts: 80 °C
  • Bakeout temperature without electric parts: 230 °C
  • Operating temperature: -10 – 50 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Pressure range: 1E-10 hPa – to ambient pressure
  • Mounting orientation: Arbitrary
  • Material: Bellows: stainless steel 316L, flange and tube: stainless steel 304L, housing: aluminum anodized
  • Motor rating: 48 V DC (standard), 120 V DC (max.); max. 4 A/Phase bipolar parallel
  • Motor type: 2-ph stepping motor
  • Service life: 10000 cycles
  • Repeatable precision: 1.25 µm (at half motor step)
€9,730.00
€12,150.00
