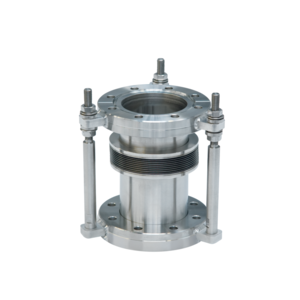

Port Aligner for Angular and Linear Adjustment

Product description

  • Ball joints for easy angular adjustment
  • Adjustment angle: 3 °
  • Maximum angle and stroke simultaneously usable
  • Flanges with through holes

Die Filterung ergab Treffer

Technical Data

  • Bakeout temperature: ≤ 250 °C
  • Axial stroke: ± 5 mm
  • Operating temperature: -15 – 80 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Pressure range: 1 · 10-10 hPa to 500 hPa over pressure
  • Mounting orientation: Arbitrary
  • Inner diameter: DN 40: 38 mm; DN 63: 65 mm | DN 100: 102 mm
  • Material: Stainless steel (bellows 316L, flange and tube 304L, holders 304)
  • Service life: Min. 10.000 cycles at full deflection
€1,340.00
€1,590.00
€1,790.00
