ISO-K Reducer Cross - Product

ISO-K Reducer Cross - Dimensions

Product
Dimensions

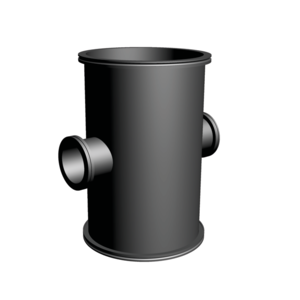

ISO-K Reducer Cross

Product description

Other nominal diameters and dimensions on request

Subcategories

Stainless Steel 304/1.4301

Die Filterung ergab Treffer

Stainless Steel 304/1.4301

Technical Data

Pressure range: 1E-8 hPa – 5E2 hPa over pressure (elastomer seal); 1E-9 hPa – 5E2 hPa over pressure (metal seal)
Temperature range: -196 – 300 °C

€620.00

€795.00

€945.00

Stainless Steel 304/1.4301

Technical Data

Pressure range: 1E-8 hPa – 5E2 hPa over pressure (elastomer seal); 1E-9 hPa – 5E2 hPa over pressure (metal seal)
Temperature range: -196 – 300 °C

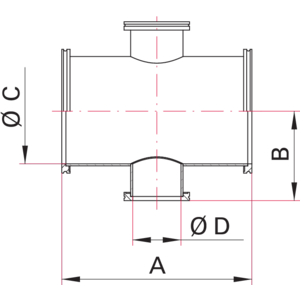

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	Nominal diameter reduced	Order number	Delivery time	Your price	Amount
DN 100 ISO-K	216 mm	107 mm	102 mm	70 mm	DN 63 ISO-K	320RKR100-063	1-3 days	€620.00
DN 160 ISO-K	276 mm	130 mm	153 mm	70 mm	DN 63 ISO-K	320RKR160-063	1-3 days	€795.00
DN 160 ISO-K	276 mm	131 mm	153 mm	102 mm	DN 100 ISO-K	320RKR160-100	1-3 days	€945.00

‹ › ×
