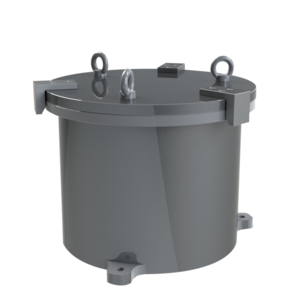

High Vacuum Chamber, Vertical, KVH

Product description

  • Cylindrical, vertical body with a welded flat bottom and top flange with FKM seal
  • Cover with ring bolts and external guides for easy installation and protection of the sealing surface
  • Surface: inside and outside glass bead blasted
  • Chamber with mounting straps
  • Chamber ports available (accessories)

Die Filterung ergab Treffer

Technical Data

  • Tightness: < 1 · 10-9 Pa m³/s
  • Pressure range: 1E-7 hPa – to ambient pressure
  • Material: Chamber body and cover made from stainless steel 304 (1.4301)
  • Temperature range: -15 – 150 °C
€2,700.00
€3,730.00
€5,190.00
€7,200.00
