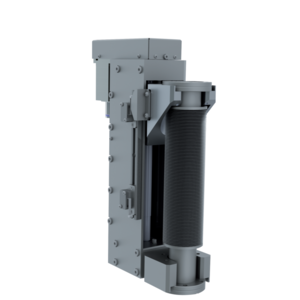

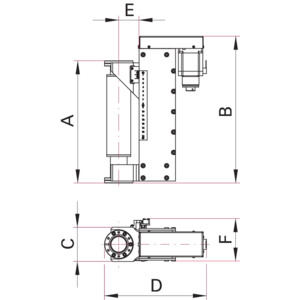

Z-Axis Precision Manipulator Motorized

Product description

  • Recirculating ball guidance system and recirculating ball screw drive
  • Zero-backlash and no slip-stick effect
  • Guidance and drive are wear-free and maintenance-free
  • Extremely stable design concept minimizes position offset due to pressure changes
  • End switches fully adjustable
  • Fixing brake (currentless closed) prevents independent movement
  • Connection flange with through holes, traversable flange with threaded holes

Die Filterung ergab Treffer

Technical Data

  • Resolution: 1.25 µm (at 1/8 motor step)
  • Bakeout temperature with electric parts: 80 °C
  • Bakeout temperature without electric parts: 230 °C
  • Operating temperature: -10 – 50 °C
  • Tightness: < 1 · 10-11 Pa m³/s
  • Pressure range: 1 · 10-10 hPa to ambient pressure
  • Mounting orientation: Arbitrary
  • Inner diameter: DN 40: 38 mm; DN 63: 65 mm | DN 100: 102 mm
  • Power consumption: Motor: 4.8 V DC; max. 2.8 A/phase bipolar parallel; brake: 24 V DC, 0.5 A
  • Material: Stainless steel (bellows: 316L, flange and tube: 304L, housing: 304)
  • Motor type: 2-ph stepping motor
  • Service life: Min. 10.000 cycles at full deflection (bellows easy replace)
  • Pitch of ball screw drive: 2 mm/Rotation
  • Repeatable precision: 1.25 µm (at 1/8 motor step)
