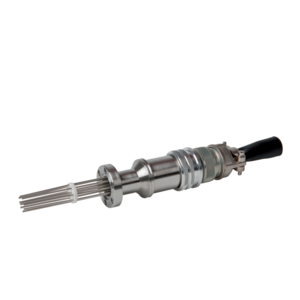

Electrical Feedthroughs (Wire Conductor), with Outside Plug, Flanged

Product description

Plug with soldering pins included, atmosphere side MIL-C-5015-compliant (-65 to 125 °C)
Conductor material: alumel
Flange material: Stainless steel
Contact in vacuum through soldering or contact clamp XKL015A
The specified voltages and currents refer to the following ambient conditions: room temperature, outside: dry air, inside: vacuum < 1 · 10^-4 hPa

Subcategories

ISO-KF
CF

Die Filterung ergab Treffer

ISO-KF

Technical Data

Heat up and cool down rate: ≤ 20 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 700 V DC
Input voltage(s): 700 V DC
Current per pin: 10 A
Temperature range (vacuum side): -100 – 300 °C

€775.00

€445.00

€485.00

€795.00

€980.00

€475.00

€505.00

CF

Technical Data

Heat up and cool down rate: ≤ 20 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-11 hPa – to ambient pressure
Feedthrough voltage: 700 V DC
Input voltage(s): 700 V DC
Current per pin: 10 A
Temperature range (vacuum side): -100 – 300 °C

€775.00

€445.00

€480.00

€1,020.00

ISO-KF

Technical Data

Heat up and cool down rate: ≤ 20 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-8 hPa – to ambient pressure
Feedthrough voltage: 700 V DC
Input voltage(s): 700 V DC
Current per pin: 10 A
Temperature range (vacuum side): -100 – 300 °C

Connection flange	A [mm]	B [mm]	C [mm]	Pins	Current, total [A]	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	74 mm	67 mm	1.42 mm	10	50 A	120XSS016-10	1-3 days	€775.00
DN 16 ISO-KF	74 mm	67 mm	1.42 mm	4	28 A	120XSS016-4	5 weeks	€445.00
DN 16 ISO-KF	74 mm	67 mm	1.42 mm	6	36 A	120XSS016-6	5 weeks	€485.00
DN 40 ISO-KF	62 mm	79 mm	1.42 mm	10	50 A	120XSS040-10	1-3 days	€795.00
DN 40 ISO-KF	64 mm	88 mm	1.42 mm	20	75 A	120XSS040-20	1-3 days	€980.00
DN 40 ISO-KF	62 mm	79 mm	1.42 mm	4	28 A	120XSS040-4	5 weeks	€475.00
DN 40 ISO-KF	62 mm	79 mm	1.42 mm	6	36 A	120XSS040-6	5 weeks	€505.00

CF

Technical Data

Heat up and cool down rate: ≤ 20 K/min
Tightness: 1 · 10^-11 Pa m³/s
Pressure range: 1E-11 hPa – to ambient pressure
Feedthrough voltage: 700 V DC
Input voltage(s): 700 V DC
Current per pin: 10 A
Temperature range (vacuum side): -100 – 300 °C

Connection flange	A [mm]	B [mm]	C [mm]	Pins	Current, total [A]	Order number	Delivery time	Your price	Amount
DN 16 CF	74 mm	67 mm	1.42 mm	10	50 A	420XSS016-10	5 weeks	€775.00
DN 16 CF	74 mm	67 mm	1.42 mm	4	28 A	420XSS016-4	1-3 days	€445.00
DN 16 CF	74 mm	67 mm	1.42 mm	6	36 A	420XSS016-6	5 weeks	€480.00
DN 40 CF	66 mm	87 mm	1.42 mm	20	75 A	420XSS040-20	5 weeks	€1,020.00

‹ › ×
