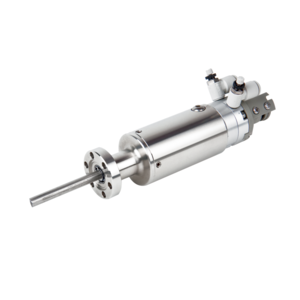

Bellows-sealed Rotary Feedthrough, Pneumatic
Product description
- Hermetically sealed, suitable for UHV
- Bellows-sealed
- Transferable torque rate applies at the given max. compressed air value
- Stainless steel ball bearing with dry lubrication, suitable for UHV
- Adjustable swivel speed
Subcategories
Die Filterung ergab Treffer
Technical Data
- Connection: (Compressed air) 4 mm hose connection
- Bakeout temperature: ≤ 250 °C
- Mode of operation: Pneumatically operated; double acting
- Operating temperature: ≤ 60 °C
- Tightness: 1 · 10-11 Pa m³/s
- Angle of rotation: 0 to 180 ° (final position adjustable)
- Pressure range: 1 · 10-9 hPa to 500 hPa over pressure
- Mounting orientation: Arbitrary
- Material: Stainless steel
- Service life: 500000 cycles
