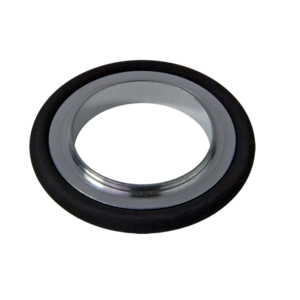

ISO-KF Reducer Centering Ring

Aluminum EN AW-6061

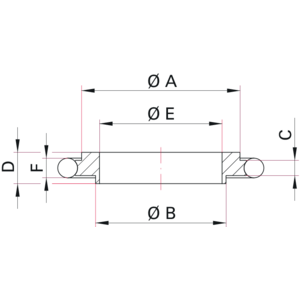

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	17 mm	12 mm	3.9 mm	8 mm	10 mm	5 mm	NBR	111ZRR016	1-3 days	€4.70
DN 25 ISO-KF	26 mm	22 mm	3.9 mm	8 mm	21 mm	5 mm	NBR	111ZRR025	1-3 days	€6.20
DN 40 ISO-KF	41 mm	34 mm	3.9 mm	8 mm	32 mm	5 mm	NBR	111ZRR040	1-3 days	€9.60
DN 16 ISO-KF	17 mm	12 mm	3.9 mm	8 mm	10 mm	5 mm	FKM	112ZRR016	1-3 days	€4.70
DN 25 ISO-KF	26 mm	22 mm	3.9 mm	8 mm	21 mm	5 mm	FKM	112ZRR025	1-3 days	€6.20
DN 40 ISO-KF	41 mm	34 mm	3.9 mm	8 mm	32 mm	5 mm	FKM	112ZRR040	1-3 days	€9.60
DN 16 ISO-KF	17 mm	12 mm	3.9 mm	8 mm	10 mm	5 mm	CR	116ZRR016	1-3 days	€4.70
DN 25 ISO-KF	26 mm	22 mm	3.9 mm	8 mm	21 mm	5 mm	CR	116ZRR025	1-3 days	€6.30
DN 40 ISO-KF	41 mm	34 mm	3.9 mm	8 mm	32 mm	5 mm	CR	116ZRR040	1-3 days	€9.60

Stainless Steel 304/1.4301

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	O-ring material	Order number	Delivery time	Your price	Amount
DN 16 ISO-KF	17 mm	12 mm	3.9 mm	8 mm	10 mm	5 mm	FKM	122ZRR016	1-3 days	€5.60
DN 25 ISO-KF	26 mm	22 mm	3.9 mm	8 mm	21 mm	5 mm	FKM	122ZRR025	1-3 days	€9.40
DN 40 ISO-KF	41 mm	34 mm	3.9 mm	8 mm	32 mm	5 mm	FKM	122ZRR040	1-3 days	€11.00
