Blank flange, stainless steel 1.4404/316L
- Available in stainless steel or aluminum
-
370FBL160
- Available in stainless steel or aluminum
- Delivery time: 1-3 days
Global-No. 2000042103
| Connection flange | DN 160 ISO-K |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 1500 hPa over pressure Metal seal: 1 · 10-9 hPa – 1500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4404 (AISI 316L) |
| Temperature range | -196 – 350 °C |

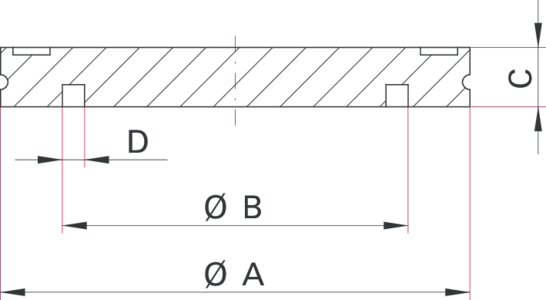

| mm | |
|---|---|
| A | 180 |
| B | 153 |
| C | 12 |
| D | 4.5 |
