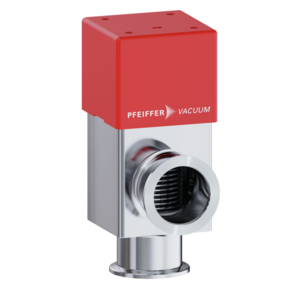

Angle Valve, DN 25 ISO-KF
- Single acting, Normally closed (air-to-open / spring-to-close)
- Elastomer sealed for high vacuum service
- Can be operated in any orientation
- With visual position indicator
- Service life: 3 million operating cycles
-
PAV-A03132
- Single acting, Normally closed (air-to-open / spring-to-close)
- Elastomer sealed for high vacuum service
- Can be operated in any orientation
- With visual position indicator
- Service life: 3 million operating cycles
- Delivery time: 1 week
Global-No. 2000192925
| Connection flange | DN 25 ISO-KF |
|---|---|
| Actuator |
|
| Bakeout temperature: actuator, position indicator | 100 °C |
| Bakeout temperature: actuator, pilot valve | 100 °C |
| Bakeout temperature: housing | 200 °C |
| Bakeout temperature: valve open, under vacuum | 200 °C |
| Operating pressure min. | 1 · 10-8 hPa |
| Tightness | 1 · 10-9 mbar l/s |
| Seal |
|
| Differential pressure in opening direction | 1000 hPa |
| Differential pressure in closing direction | 2000 hPa |
| Pressure max. (absolute) | 2000 hPa |
| Compressed air (overpressure) | 4000 – 7000 hPa |
| Feedthrough |
|
| Mounting orientation | Arbitrary |
| Input voltage(s) | 24 V DC |
| Inrush Power | 0.6 W |
| Housing |
|
| Weight | 0.5 kg |
| Conductance value with molecular flow | 14 l/s |
| Closing/opening time | 165 ms/60 ms |
| Service life | 3000000 cycles |
| Position indicator |
|

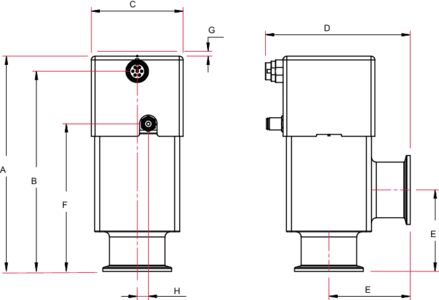

| Position indicator: Load capacity | ≤ 48 V AC / DC / 500 mA |
| Control valve | Included |
| Temperature range | 0 – 200 °C |
| Type | Angle valve |
| Ambient temperature | 0 – 50 °C |
| Valve plate | Stainless steel (AISI 316) |
| mm | |
|---|---|
| A | 127 |
| B | 114 |
| C | 59 |
| D | 94 |
| E | 50 |
| F | 81 |
| G | 4 |
| H | 7 |
