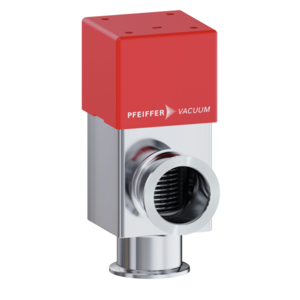

Angle Valve, DN 40 ISO-KF
- Single acting, Normally closed (air-to-open / spring-to-close)
- Elastomer sealed for high vacuum
- Can be operated in any orientation
- With visual position indicator
- Service life: 3 million operating cycles
-
PAV-A04130
- Single acting, Normally closed (air-to-open / spring-to-close)
- Elastomer sealed for high vacuum
- Can be operated in any orientation
- With visual position indicator
- Service life: 3 million operating cycles
- Delivery time: 1 week
Global-No. 2000236372

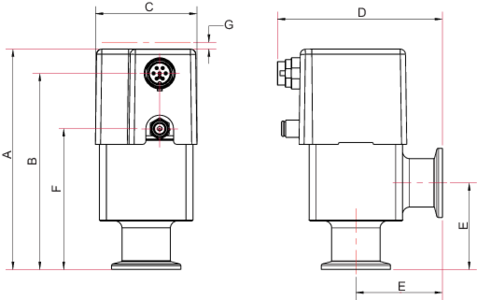

| Connection flange | DN 40 ISO-KF |
|---|---|
| Actuator | Pneumatic |
| Bakeout temperature: actuator | 100 °C |
| Bakeout temperature: housing | 200 °C |
| Bakeout temperature: valve open, under vacuum | 200 °C |
| Tightness | 1 · 10-9 mbar l/s |
| Operating pressure min. | 1 · 10-8 hPa |
| Seal | FKM |
| Differential pressure in opening direction | 1000 hPa |
| Differential pressure in closing direction | 2000 hPa |
| Pressure max. (absolute) | 2000 hPa |
| Compressed air (overpressure) | 4000 – 7000 hPa |
| Feedthrough | Bellows (Stainless steel) |
| Mounting orientation | Arbitrary |
| Housing | Aluminum |
| Weight | 1.1 kg |
| Conductance value with molecular flow | 45 l/s |
| Closing/opening time | 350 ms/215 ms |
| Service life | 3000000 cycles |
| Temperature range | 0 – 200 °C |
| Type | Angle valve |
| Ambient temperature | 0 – 50 °C |
| Valve plate | Stainless steel (AISI 316) |
| Position indicator | Included |
| Position indicator: Load capacity | ≤ 48 V AC / DC / 500 mA |
| A | 172 mm |
|---|---|
| B | 159 mm |
| C | 73 mm |
| D | 117 mm |
| E | 65 mm |
| F | 118 mm |
| G | 4 |
