Butterfly valve, manually actuated
  • Order number: 120VSM016
  • Swivel valve plate with FKM seal
  • Valve position indicated by T-handle
  • Nearly free clearance in open position
  • In the open position, the valve disc does not protrude from the valve
  • Double valve head seal made from FKM
  • Service life: 3000 operating cycles
  • Delivery time: 1-3 days
€375.00
Connection flange DN 16 ISO-KF
Actuator
  • Manual
Tightness 1 · 10-10 Pa m³/s
Seal
  • FKM
Pressure range 1E-8 hPa – to ambient pressure
Housing
  • Stainless steel
Temperature range -15 – 130 °C
Type Butterfly valve

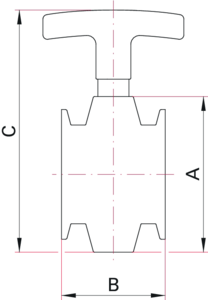

Dimension Image
mm
A 80
B 60
C 125
