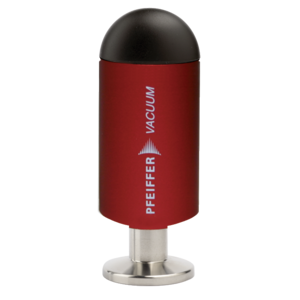

TPR 280, 80 °C
- Flange size DN 16 ISO-KF
- For general vacuum applications
- Compact and rugged
- Maximum pressure refers to inert gases
- Order number: PT R26 950
- Flange size DN 16 ISO-KF
- For general vacuum applications
- Compact and rugged
- Maximum pressure refers to inert gases
- Delivery time: 1-3 days
| Connection flange | DN 16 ISO-KF |
|---|---|
| Resolution | 1 % of reading |
| Output signal: Measuring range | 1.5 – 8.5 V |
| Output signal: Minimum load | 10 kΩ |
| Bakeout temperature at the flange | ≤ 80 °C |
| Seal |
|
| Pressure max. | 10000 hPa |
| Feedthrough |
|
| Attribute | Stainless steel, metal sealed |
| Input voltage(s) | 14 – 30 V DC |
| Flange, material | Stainless steel |
| Weight | 80 g |
| Filament | Tungsten |
| Power consumption max. | 1 W |
| Measuring range | 1E-4 – 1E3 hPa |
| Accuracy of measurement in range 1 | 15 % (1E-3 hPa – 1E2 hPa) |
| Measurement cable length | 200 m |
| Measuring method |
|
| Response time | 80 ms |
| Protection degree |
|
| Temperature: Storage | -20 – 65 °C |
| Ambient temperature | 5 – 60 °C |
| Volume | 1.5 cm³ |
| Repeatability in range 1 | 2 % (1E-3 hPa – 1E2 hPa) |
