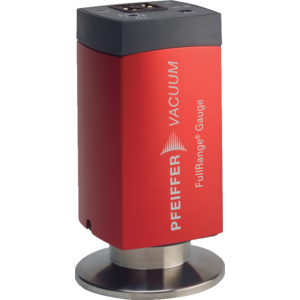

PKR 360 C, low current, ceramic coated
  • Order number: PT T02 150 011
  • The maximum pressure applies to inert gases and temperatures below 55 °C
  • Rugged and dependable
  • Insensitive to air ingress
  • Without elastomer seal
  • For measuring corrosive media
  • Delivery time: 6 weeks
€2,010.00
Anode
  • Mo
Connection flange DN 40 ISO-KF
Output signal: Measuring range 2 – 8.6 V
Output signal: Minimum load 10 kΩ
Bakeout temperature max.(electronics removed) ≤ 150 °C
Pressure max. 10000 hPa
Feedthrough
  • Glass, ceramic-coated
Attribute Corrosion resistant
Input voltage(s) 14.5 – 30 V DC
Flange, material Stainless Steel 1.4435 (AISI 316L)
Weight 0.32 kg
Filament Tungsten
Power consumption max. 2 W
Measuring range 1E-9 – 1E3 hPa
Accuracy of measurement in range 1 30 % (1E-8 hPa – 1E2 hPa)
Measurement cable length 300 m
Measuring method
  • Pirani
  • Cold cathode
Temperature: Storage -40 – 70 °C
Ambient temperature 5 – 55 °C
Volume 20.9 cm³
Repeatability in range 1 5 % (1E-8 hPa – 1E2 hPa)
Dimension Image
