Plug-on connector, BeCu (gold-plated)
    XAK015A
    Global-No. 2000000790
  • 10 pieces per set
  • Including hexagon socket wrench for flat head screw
  • Delivery time: 1-3 days
€97.00
Conductor diameter 1.3 mm
Materials in contact with media
  • BeCu (gold-plated)
Current 15 A
Temperature range ≤ 150 °C
Temperature range (vacuum side) 200 °C

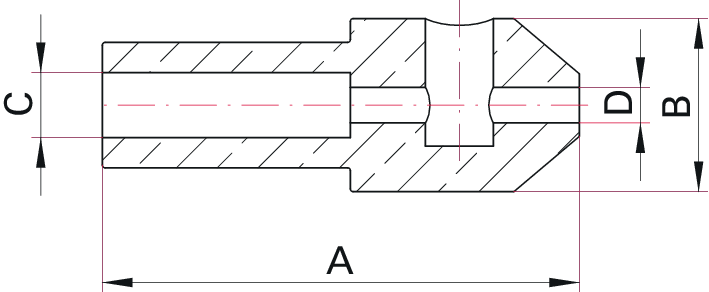

Dimension Image
mm
A 17.5
B 6.35
C 1.3
D 1.3
