Clamping ring for elastomer seals, aluminum ADC 12/Steel
- Suitable for use with elastomer seals
- Compact design
- Screw: Hexagon head; wrench width 7 mm
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
110BSB016
- Suitable for use with elastomer seals
- Compact design
- Screw: Hexagon head; wrench width 7 mm
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000050041
| Connection flange | DN 10 – DN 16 ISO-KF |
|---|---|
| Material | Aluminum ADC 12 / Steel |
| Temperature range | 0 – 100 °C |
| Overpressure max. | 500 hPa |

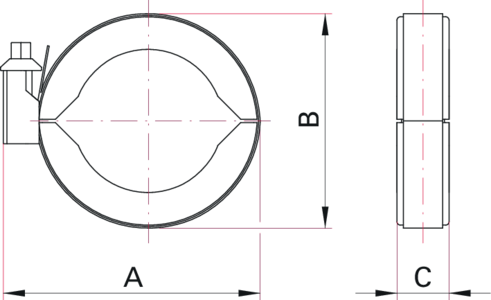

| mm | |
|---|---|
| A | 54 |
| B | 39 |
| C | 16 |
