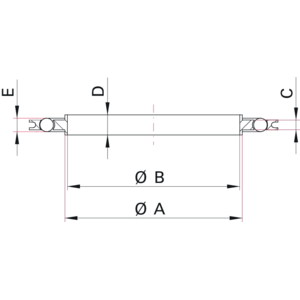

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	O-ring material	Order number	Delivery time	Your price
DN 63 ISO-K	70 mm	68 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA063	2 weeks	€17.00
DN 80 ISO-K	83 mm	81 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA080	1-3 days	€25.00
DN 100 ISO-K	102 mm	100 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA100	1-3 days	€21.00
DN 160 ISO-K	153 mm	151 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA160	2 weeks	€26.00
DN 200 ISO-K	213 mm	211 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA200	1-3 days	€36.00
DN 250 ISO-K	261 mm	259 mm	3.9 mm	8 mm	5.33 mm	NBR	311ZRA250	1-3 days	€47.00
DN 320 ISO-K	318 mm	313 mm	5.6 mm	14 mm	7 mm	NBR	311ZRA320	1-3 days	€134.00
DN 400 ISO-K	400 mm	395 mm	5.6 mm	14 mm	7 mm	NBR	311ZRA400	1-3 days	€168.00
DN 500 ISO-K	501 mm	496 mm	5.6 mm	14 mm	7 mm	NBR	311ZRA500	1-3 days	€189.00
DN 630 ISO-K	651 mm	646 mm	5.6 mm	14 mm	7 mm	NBR	311ZRA630	1-3 days	€285.00
DN 63 ISO-K	70 mm	68 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA063	1-3 days	€19.00
DN 80 ISO-K	83 mm	81 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA080	1-3 days	€26.00
DN 100 ISO-K	102 mm	100 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA100	1-3 days	€26.00
DN 160 ISO-K	153 mm	151 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA160	1-3 days	€38.00
DN 200 ISO-K	213 mm	211 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA200	1-3 days	€49.00
DN 250 ISO-K	261 mm	259 mm	3.9 mm	8 mm	5.33 mm	FKM	312ZRA250	1-3 days	€56.00
DN 320 ISO-K	318 mm	313 mm	5.6 mm	14 mm	7 mm	FKM	312ZRA320	1-3 days	€124.00
DN 400 ISO-K	400 mm	395 mm	5.6 mm	14 mm	7 mm	FKM	312ZRA400	1-3 days	€198.00
DN 500 ISO-K	501 mm	496 mm	5.6 mm	14 mm	7 mm	FKM	312ZRA500	1-3 days	€210.00
DN 630 ISO-K	651 mm	646 mm	5.6 mm	14 mm	7 mm	FKM	312ZRA630	1-3 days	€305.00
DN 63 ISO-K	70 mm	68 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA063	1-3 days	€19.00
DN 80 ISO-K	83 mm	81 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA080	4 weeks	€21.00
DN 100 ISO-K	102 mm	100 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA100	1-3 days	€21.00
DN 160 ISO-K	153 mm	151 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA160	1-3 days	€26.00
DN 200 ISO-K	213 mm	211 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA200	1-3 days	€36.00
DN 250 ISO-K	261 mm	259 mm	3.9 mm	8 mm	5.33 mm	CR	316ZRA250	1-3 days	€47.00
DN 320 ISO-K	318 mm	313 mm	5.6 mm	14 mm	7 mm	CR	316ZRA320	1-3 days	€136.00
DN 400 ISO-K	400 mm	395 mm	5.6 mm	14 mm	7 mm	CR	316ZRA400	1-3 days	€158.00
DN 500 ISO-K	501 mm	496 mm	5.6 mm	14 mm	7 mm	CR	316ZRA500	1-3 days	€230.00
DN 630 ISO-K	651 mm	646 mm	5.6 mm	14 mm	7 mm	CR	316ZRA630	On request	€315.00

Stainless Steel 316Ti/1.4571 (DN 320: 304/1.4301) Outer Ring: Aluminum

Notes

Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.

Connection flange	A [mm]	B [mm]	C [mm]	D [mm]	E [mm]	O-ring material	Order number	Delivery time	Your price
DN 63 ISO-K	70 mm	68 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA063	1-3 days	€28.00
DN 80 ISO-K	83 mm	81 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA080	1-3 days	€31.00
DN 100 ISO-K	102 mm	100 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA100	1-3 days	€31.00
DN 160 ISO-K	153 mm	151 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA160	1-3 days	€53.00
DN 200 ISO-K	213 mm	211 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA200	1-3 days	€78.00
DN 250 ISO-K	261 mm	259 mm	3.9 mm	8 mm	5.33 mm	FKM	322ZRA250	1-3 days	€89.00
DN 320 ISO-K	318 mm	312 mm	5.6 mm	12 mm	7 mm	FKM	322ZRA320	1-3 days	€235.00

‹ › ×
