Bulkhead clamp, aluminum 3.2315/EN AW-6082
- Suitable for use with elastomer seals
- Nominal diameter DN 40 ISO-KF suitable for safe fixation of the HiPace 30
- Screws and washers included
- For mounting on a base plate with KF centering ring
- DN16, DN25, DN50 not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
110BUH025
- Suitable for use with elastomer seals
- Nominal diameter DN 40 ISO-KF suitable for safe fixation of the HiPace 30
- Screws and washers included
- For mounting on a base plate with KF centering ring
- DN16, DN25, DN50 not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000050060
| Connection flange | DN 20 – DN 25 ISO-KF |
|---|---|
| Number of screws | 6 pcs. |
| Holes |
Number of tapped holes in base plate: DN 10-40: 6 x 60° DN 50: 8 x 45° (Thread M5, depth: min. 10 mm) |
| Scope of delivery |
|
| Material | Aluminum 3.2315/EN AW-6082 |
| Temperature range | -196 – 200 °C |
| Overpressure max. | 500 hPa |

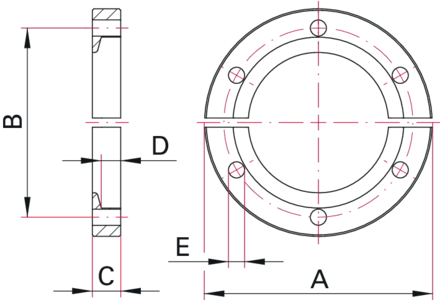

| mm | |
|---|---|
| A | 60.3 |
| B | 48 |
| C | 9.9 |
| D | 6.6 |
| E | 5.3 |
