Reducing tee, stainless steel 1.4301/304
  • Order number: 120RTR050-040
  • Delivery time: 1-3 days
€130.00
Pressure range 1 · 10-8 hPa to 1500 hPa over pressure (elastomer seal); 1 · 10-9 hPa to 1500 hPa over pressure (metal seal)
Material Stainless Steel 304/1.4301
Nominal diameter DN 50 ISO-KF
Nominal diameter reduced DN 40 ISO-KF
Temperature range -196 – 300 °C

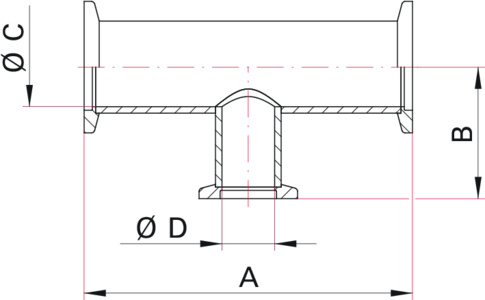

Dimension Image
mm
A 140
B 65
C 50
D 40
