Cross piece, stainless steel 1.4404/316L
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
-
170RKS016
- ISO-KF in DN10 to DN50 according to DIN 28403 und ISO 2861
- ISO-K / ISO-F in DN63 to DN630 according to DIN 28404 and ISO 1609
- CF in DN16 to DN250 according to ISO 3669
- Delivery time: 1-3 days
Global-No. 2000044664
| Connection flange | DN 16 ISO-KF |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure Metal seal: 1 · 10-9 hPa – 500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4404 (AISI 316L) |
| Temperature range | -196 – 350 °C |

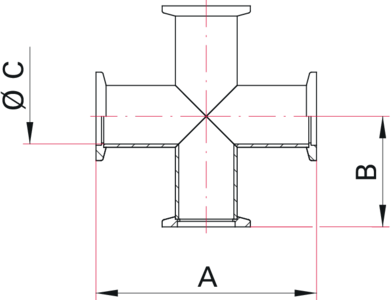

| mm | |
|---|---|
| A | 80 |
| B | 40 |
| C | 16 |
