VCR adapter, male, stainless steel 1.4301/304
  • Order number: 120AVM025-0250
  • Original Swagelok® VCR Adapter
  • Delivery time: 1-3 days
€89.00
Connection flange In: DN 25 ISO-KF | Out: 1/4'' VCR
Pressure range 1E-8 hPa – 5E2 hPa over pressure (elastomer seal); 1E-9 hPa – 5E2 hPa over pressure (metal seal)
Materials in contact with media
  • Stainless steel 1.4301 (AISI 304)
  • Stainless steel 1.4401 (AISI 316)
Specific Dimensions or Numbers VCR-1/4"
Temperature range -196 – 300 °C
VCR connection 1/4"

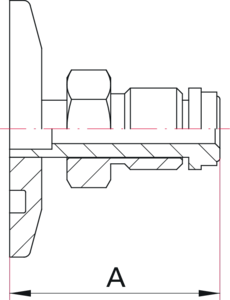

Dimension Image
mm
A 33
