Centering ring with screen, stainless steel 1.4301/304
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
322ZRD080
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000041929
| Connection flange | DN 80 ISO-K |
|---|---|
| Wire thickness | 0.2 mm |
| Mesh size | 0.6 mm |
| Materials in contact with media |
Stainless steel 1.4301 (AISI 304) FKM |
| O-ring material | FKM |
| Temperature range | -15 – 150 °C |

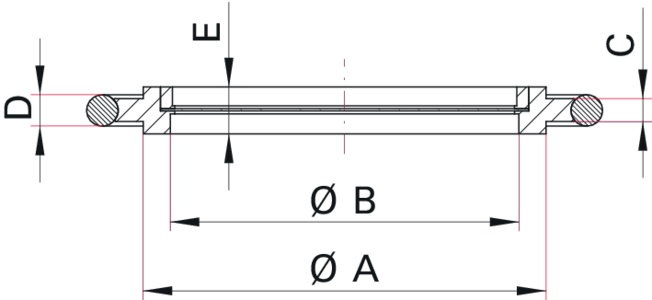

| mm | |
|---|---|
| A | 83 |
| B | 73 |
| C | 3.9 |
| D | 5.33 |
| E | 8 |
