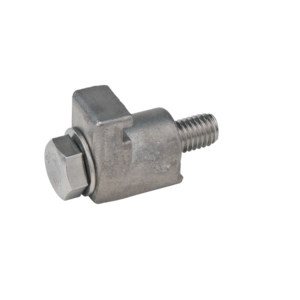

Claw clamp, zinc-plated steel
- Zinc-plated and stainless steel versions: Suitable for use with metal and elastomer seals
- Aluminum version: Suitable for use with elastomer seals
- For installing an ISO-K flange on a base plate with a centering ring lying on it
- For a base plate with O-ring groove, please use the shorter claw clamp for the base plate with the sealing groove (BPD)
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
-
350BPR250
- Zinc-plated and stainless steel versions: Suitable for use with metal and elastomer seals
- Aluminum version: Suitable for use with elastomer seals
- For installing an ISO-K flange on a base plate with a centering ring lying on it
- For a base plate with O-ring groove, please use the shorter claw clamp for the base plate with the sealing groove (BPD)
- Not to be used for the installation of turbo pumps! Use the fastening elements given in the corresponding operating instructions.
- Delivery time: 1-3 days
Global-No. 2000042036
| Connection flange | DN 160 - DN 250 ISO-K |
|---|---|
| Material | Zinc-plated steel |
| Temperature range | 0 – 200 °C |

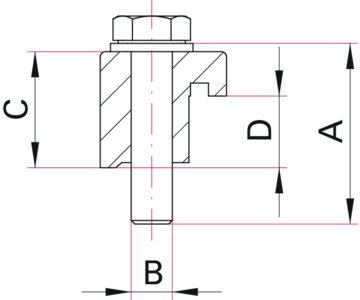

| A | 35 mm |
|---|---|
| B | M10 |
| C | 23 mm |
| D | 14 mm |
