Blank flange, stainless steel 1.4301/304
- Other flange materials available upon request
- Other flange sizes on request
-
520FBL160
- Other flange materials available upon request
- Other flange sizes on request
- Delivery time: On request
Global-No. 2000040189
| Connection flange | DN 160 ISO-F |
|---|---|
| Number of screws | 8 pcs. |
| Pressure range | 1E-8 hPa – 1.5E3 hPa over pressure (elastomer seal); 1E-9 hPa – 1.5E3 hPa over pressure (metal seal) |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Temperature range | 196 – 300 °C |

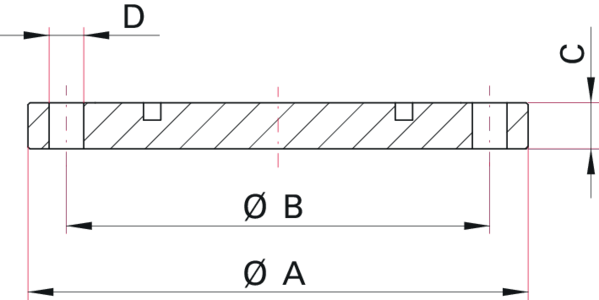

| mm | |
|---|---|
| A | 225 |
| B | 200 |
| C | 16 |
| D | 11 |
