Welding flange ring, stainless steel 1.4301/304
- Other flange materials available upon request
-
320FAN100-114
- Other flange materials available upon request
- Delivery time: 1-3 days
Global-No. 2000042487
| Connection flange | DN 100 ISO-K |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 1500 hPa over pressure Metal seal: 1 · 10-9 hPa – 1500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Pipe dimension | 114.3 mm × 2 mm |
| Specific Dimensions or Numbers | Pipe Ø 114.3 x 2 mm |
| Temperature range | -196 – 300 °C |

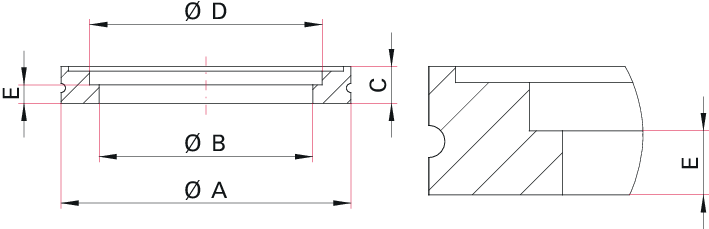

| mm | |
|---|---|
| A | 130 |
| B | 102 |
| C | 12 |
| D | 114.6 |
| E | 6 |
