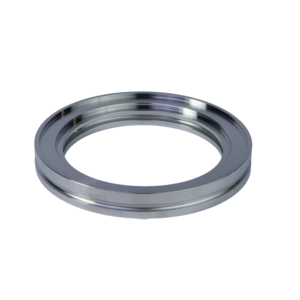

Welding flange ring, stainless steel 1.4301/304
    320FAN250-273-S
    Global-No. 2000042498
  • Version with weld lip
  • Delivery time: 1-3 days
€215.00
Connection flange DN 250 ISO-K
Pressure range Elastomer seal: 1 · 10-8 hPa – 1500 hPa over pressure
Metal seal: 1 · 10-9 hPa – 1500 hPa over pressure
Materials in contact with media Stainless steel 1.4301 (AISI 304)
Pipe dimension 273 mm × 3 mm
Specific Dimensions or Numbers Pipe Ø 273 x 3 mm
Temperature range -196 – 300 °C

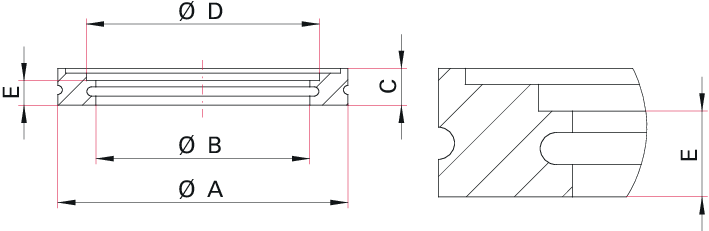

Dimension Image
mm
A 290
B 261
C 12
D 273.4
E 8
