Elbow, 90°, Stainless steel 1.4301/304
    320RRB063-90
    Global-No. 2000042617
  • Larger nominal diameters on request
  • Delivery time: 1-3 days
€102.00
Connection flange DN 63 ISO-K
Pressure range Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure
Metal seal: 1 · 10-9 hPa – 500 hPa over pressure
Materials in contact with media Stainless steel 1.4301 (AISI 304)
Temperature range -196 – 300 °C

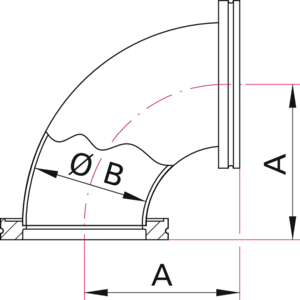

Dimension Image
mm
A 88
B 66
Name Category Language Filesize
Rohrbogen, 90°
Datasheet_320RRB063-90_de.pdf 		Datasheet German 344 kB
Elbow, 90°
Datasheet_320RRB063-90_en.pdf 		Datasheet English 330 kB
3D Step
320RRB063-90.stp 		3D CAD   146 kB
