Tee, stainless steel 1.4301/304
- Larger nominal diameters on request
-
320RTS063
- Larger nominal diameters on request
- Delivery time: 1-3 days
Global-No. 2000042718
| Connection flange | DN 63 ISO-K |
|---|---|
| Pressure range |
Elastomer seal: 1 · 10-8 hPa – 500 hPa over pressure Metal seal: 1 · 10-9 hPa – 500 hPa over pressure |
| Materials in contact with media | Stainless steel 1.4301 (AISI 304) |
| Temperature range | -196 – 300 °C |

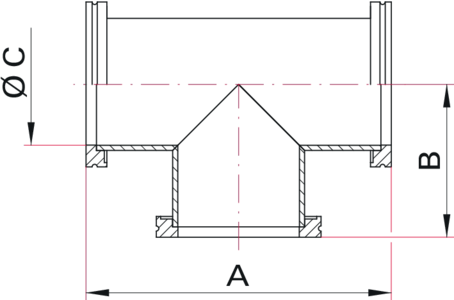

| mm | |
|---|---|
| A | 176 |
| B | 88 |
| C | 70 |
